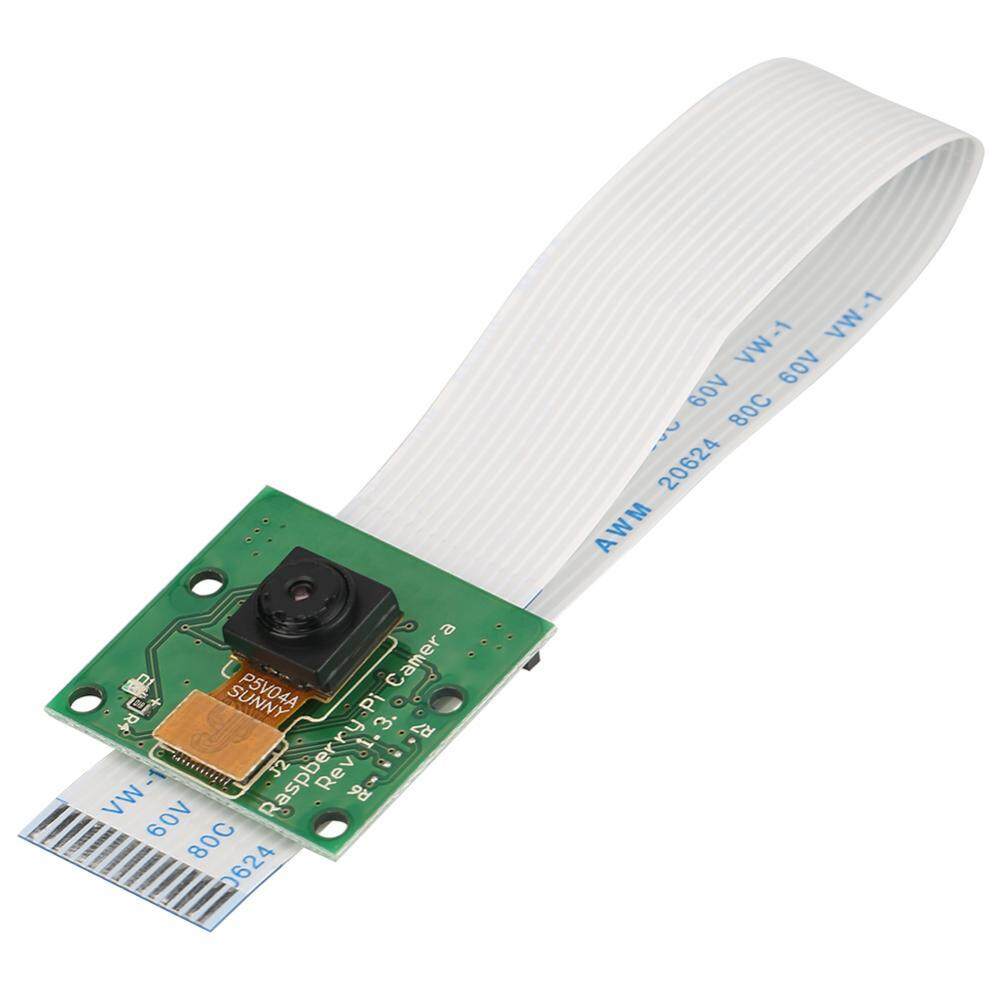

Mini Camera Video Module 5MP 1080p Sensor for Raspberry Pi with 15cm FPC Cable

• 100% Brand new and high quality
• The sensor itself has a native resolution of 5 megapixel, and has a fixed lens on board
• The camera is compatible with the original one, supports all revisions for Raspberry Pi
• 15 cm flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector

Features:

• 100% Brand new and high quality.
• The sensor itself has a native resolution of 5 megapixel, and has a fixed lens on board.
• Can be directly connected to the raspberry pie control panel via soft cable, capable of recording 1080p Full HD video.
• The camera is compatible with the original one, supports all revisions for Raspberry Pi.
• 15 cm flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector.
• The board itself is tiny, which makes it perfect for mobile or other applications where size and image quality are important.

Specifications:

Material: Plastic

Pixel: 5MPixel

Lens: 1/4 inch Aperture: 2.9 Focal length: 3.29mm Diagonal: 72.4 degree

Size: Approx. 17 x 2.5cm / 6.69 x 0.98inch Weight: Approx. 12g

Hardware connection: 1. Soft FPC cable, 90 degree vertical connector, next to HDMI port. When connecting, the contact side faces the HDMI interface.

2. Remove the protective film from the lens before use.

3. Bare board, pay attention to ESD , beware of static!

Software usage: 1. Firmware for RPi and raspi-config have been updated for the camera, please execute apt-get update; apt-get upgrade;

2. Select camera in raspi-config, start the camera driver in the firmware for RPi , and then reboot.

3. Use the command line program raspivid and raspistill operation camera to capture video fragments or images.

4. The captured video fragments need to be played by mplayer.

Package included:

1 x General Camera for Raspberry Pi 1 x 15cm FFC Cable
