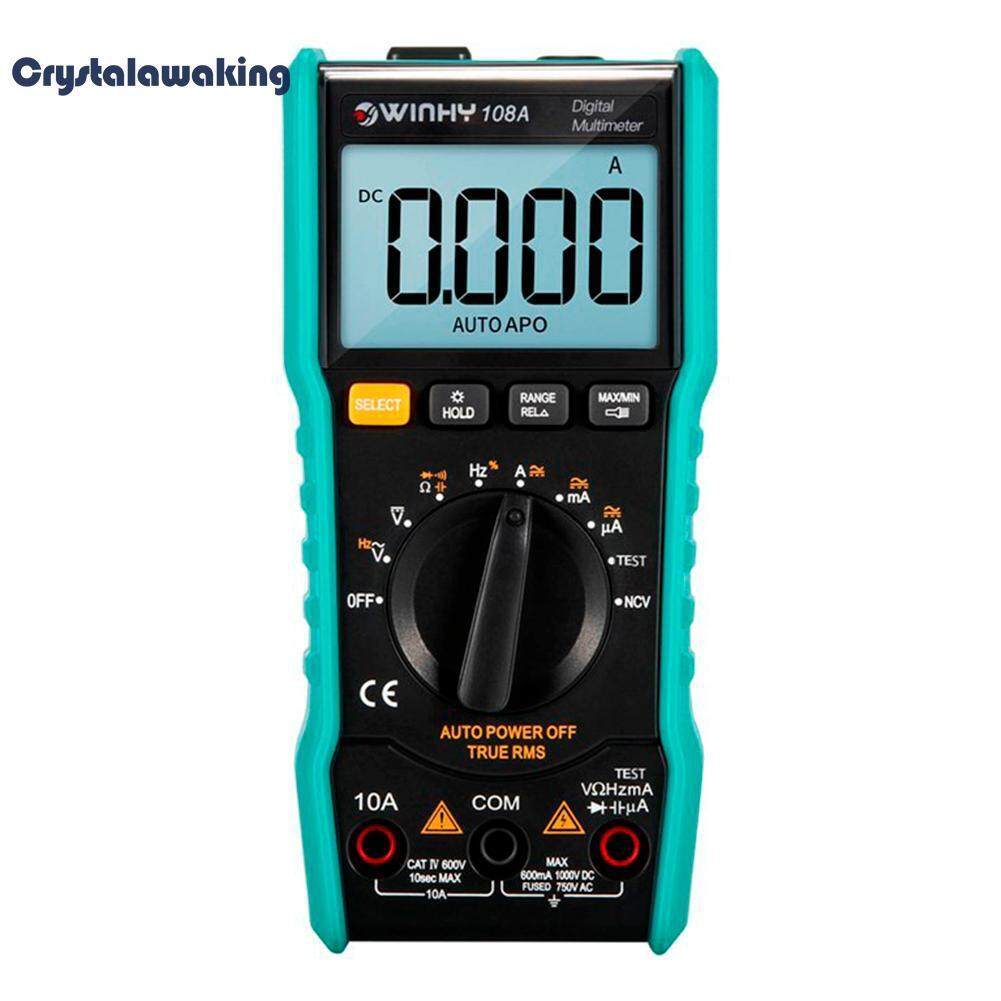

WINHY 108A Digital Multimeter Auto Range Handheld LCD Voltage Current Meter

Features: 1. 6000 counts and multifunction: display of 6000 counts and test of AC/ DC voltage and current, diode, resistance, capacitance, frequency. 2. Full protection: the body is equipped with a shockproof sleeve to prevent the instrument case from being damaged due to falling down, giving the body a full range of protection. 3. Easy to use and take: designed of compact and light, a bracket on the back for easy handling and placement. 4. LCD screen with backlight makes reading data clearer and faster. 5. Booster power supply guarantees ultra-high brightness of backlight even at 2.3V low battery edge. Function:  Hold mode, backlight, auto power off, NCV test, frequency test, continuity buzzer test with LCD, over load protection, short-circuit protection, live line test, diode test. Specifications: Material: PVC Display: LCD display with backlight, 6000 counts Range control: auto range Screen size: 56 x 45mm/ 2.2 x 1.8in Power: 2 x AAA batteries (not included) DC voltage range: 6V/60V/600V/1000V DC voltage resolution: 0.001V/0.01V/0.1V/1V AC voltage range: 6V/60V/600V/750V AC voltage resolution: 0.001V/ 0.01V/0.1V/1V DC current range: 600μA/6000μA/60mA/600mA DC current resolution: 0.1μA/1μA/10μA/100μA AC current range: 600μA/6000μA/60mA/600mA AC current resolution: 0.1μA/1μA/10μA/100μA Frequency range: 10Hz/100Hz/1KHz/10KHz/100KHz/1MHz/20MHz Frequency resolution: 0.01Hz/0.1Hz/1Hz/10Hz/100Hz/1KHz/10KHz Resistance range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/40MΩ Resistance resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ Capacitance range: 60nF/600nF/6μF/60μF/600μF/6mF/30mF Capacitance resolution: 10pF/100pF/1nF/10nF/100nF/11μF/10μF Sampling time: about 3 times/second NCV detection: ≥2V rms Working temperature/humidity: 0~40℃, <80% RH Storage temperature/humidity: -10~60℃, <70% RH Operating environment: 0~40℃ (32-104℉) Storage environment: -20~60℃ (-4-140℉) Product size: 145 x 75 x 32mm/5.71 x 2.95 x 1.26"
