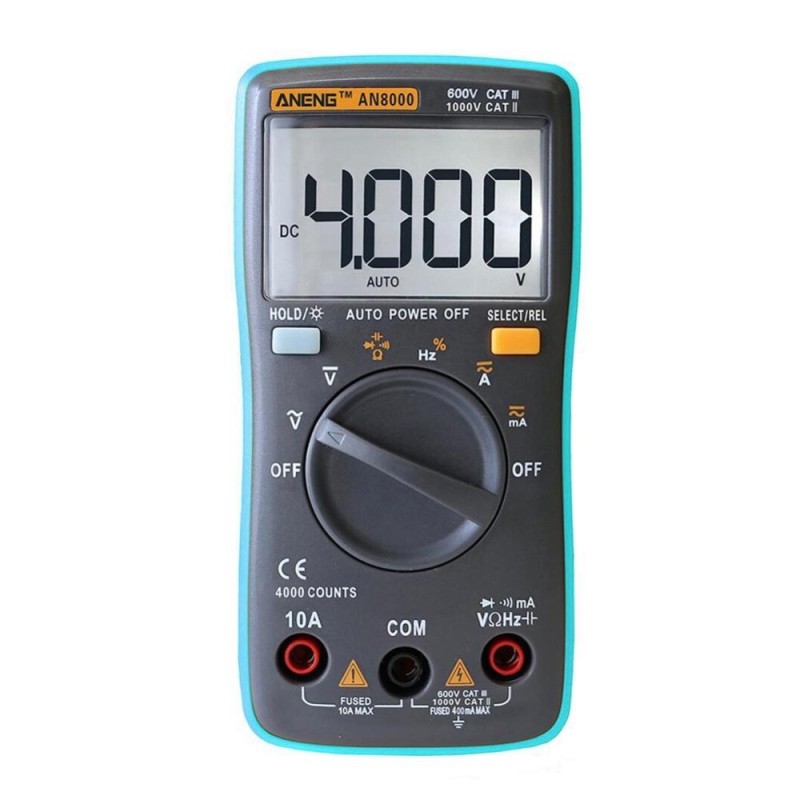

Digital Multimeter 4000 Counts Backlight AC/DC Ammeter Voltmeter Ohm Meter (Blue) - intl

Giới thiệu sản phẩm Digital Multimeter 4000 Counts Backlight AC/DC Ammeter Voltmeter Ohm Meter (Blue) - intl

Digital Multimeter 4000 Counts Backlight AC/DC Ammeter Voltmeter Ohm Meter (Blue)

Features:  Auto ranges. 550V protection in Resistance, Capacitance and Frequency ranges. Large LCD display, MAX display 4000 counts. Sample rate: 3 times per second. Backlight. Data hold. Relative measurement. Polarity identification. Low voltage indication. 10A high current and low current measurement. Auto power off. Main measurements: AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode and Continuity Testing, Frequency and duty cycle.  Specifications: Capacitance :4nF(±5.0%+4),40nF(±2.5%+4),400nF/4.000uF/40.00uF/400.0uF/1000uF /4000uF(±3.5%+4) DC volts: 400mV/4V/40V(±0.5%+4),400V/600V(±0.8%+4) AC volts: 400mV(±1.5%+4), 4V/40V/400V(±1.2%+4),600V(±1.5%+4) DC current: 40mA/400mA(±1.0%+4),10A(±1.5%+4) AC current: 40mA/400mA/10A(±2.0%+4 ,50-200Hz) Resistance: 400Ω/4K/40K/400K/4M(±0.8%+4),40MΩ(±2.0%+4) Frequency: 99.5/999.5/9.999k/99.99k/999.9k/9.999MHz (±0.08%+2) Duty cycle: 0.1% to 99.9%(±0.08%+2) Measurement mode: mode Over range indication: OL Working environment: 0~40℃, relative humidity< 80% Supply power: 3V (1.5V AAA batteries * 2 Pcs)(Not included) Frequency: 1Hz to 10MHz Capacitance : 10pF to 4000uF AC volts: 0.1mV to 750V DC volts: 0.1mV to 1000V AC current: 0.1uA to 10A DC current: 0.1uA to 10A Resistanc: 0.1Ω to 40MΩ Duty cycle: 1% to 99% Product size: approx. 130*65*25mm/5.11*2.55*0.98' Net weight: approx. 184g Note: Please allow 1-3mm differs due to manual measurement. Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.

Bộ sản phẩm bao gồm:

Đặc điểm chính:
